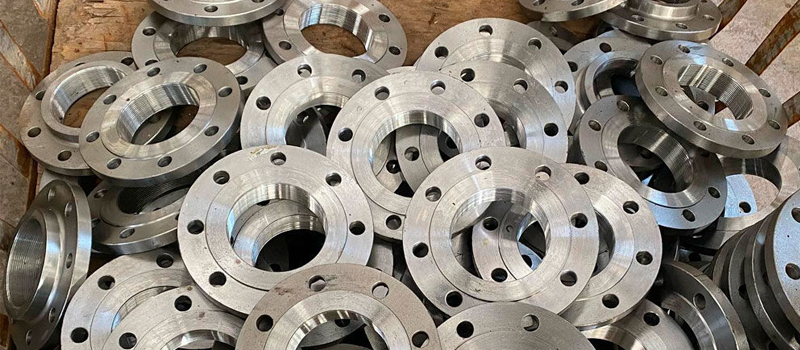

Hybrid Steels are leading manufacturers of qualitative ranges of stainless steel flanges catering to the entire gamut of applications industrially. Here at Hybrid Steels, we design and manufacture such products that promise superior durability with excellent resistance to corrosion and high performance even in very damaging surroundings. Be it very high or low temperatures or whether your applications call for its use in an aggressive way with chemicals, whatever, our Stainless Steel Flanges Manufacturer are sure to conform. We are one of the major strong Stainless Steel Flanges Manufacturer in India, and we make sure that all our supplies are of top quality and most reliable.
Stainless Steel Flanges Manufacturer are well known because of their outstanding anti-corrosion capability; thus, making the material extensively effective in marine, chemical processing, and energy generation industries. We make use of high-quality alloys such as Inconel, Monel, and Hastelloy to assure that even within corrosive substances at higher temperatures, the products shall retain strength and integrity.
It was rated as exceptional in thermal stability; hence, the material was suitable to work in very high temperatures in such areas like aerospace and gas turbines. They can support thermal cycling without losing their mechanical properties hence providing reliability and length in critical operations.
It is due to these features that Stainless Steel Flanges have become essential item manufacturers in many industries where the compromise on safety and performance is not taken kindly. They make sure the solution is durable, hence reducing maintenance costs while boosting efficiency in operations. They find their applications in many high-risk industries due to these features.
Besides, our manufactured Stainless Steel Flanges have excellent mechanical strength in terms of tensile and yield strength. Materials are used further in quite a number of critical applications in extreme conditions; it may be sub sea operations or nuclear facilities. It gains a reputation for the delivery of superior performance in harsh conditions before getting that the sophisticated industrial systems operate safely as well as effectively.
| Flange Type | Standard | Material Grade | Size Range | Pressure Rating | Finish |
| Slip-On Flange | ANSI B16.5 | 304, 316 | 1/2" to 24" | 150, 300, 600 | Smooth, Raised Face |
| Weld Neck Flange | ANSI B16.5 | 304, 316 | 1/2" to 24" | 150, 300, 600 | Smooth, Raised Face |
| Blind Flange | ANSI B16.5 | 304, 316 | 1/2" to 24" | 150, 300, 600 | Smooth, Raised Face |
| Threaded Flange | ANSI B16.5 | 304, 316 | 1/2" to 12" | 150, 300 | Smooth, Raised Face |
| Socket Weld Flange | ANSI B16.5 | 304, 316 | 1/2" to 24" | 150, 300, 600 | Smooth, Raised Face |
| Lap Joint Flange | ANSI B16.5 | 304, 316 | 1/2" to 24" | 150, 300 | Smooth, Raised Face |
| Blind Flange | DIN 2573 | 304, 316 | DN 10 to DN 300 | PN 6, PN 10, PN 16 | Smooth, Raised Face |
| Plate Flange | DIN 2527 | 304, 316 | DN 10 to DN 300 | PN 6, PN 10, PN 16 | Smooth, Raised Face |
| Grade | UNS Number | Characteristics | Applications |
| 304 | UNS S30400 | Good corrosion resistance, excellent forming and welding characteristics | Food processing, chemical processing, and architectural applications |
| 316 | UNS S31600 | Superior corrosion resistance, especially in marine environments | Marine equipment, chemical processing, and pharmaceuticals |
| 321 | UNS S32100 | Good oxidation resistance, stabilized against carbide precipitation | Aerospace, automotive, and high-temperature applications |
| 310 | UNS S31000 | High temperature resistance, good oxidation resistance | High-temperature furnaces, chemical processing, and heat exchangers |
| 2205 | UNS S32205 | High strength, good resistance to pitting and corrosion | Oil and gas industry, chemical processing, and marine environments |
| 2507 | UNS S32750 | Super duplex, high strength, excellent resistance to chloride stress corrosion cracking | Desalination, oil and gas industry, and chemical processing |
| 904L | UNS N08904 | High corrosion resistance, especially in sulfuric acid environments | Acid processing, chemical industry, and pollution control equipment |
| Duplex 2205 | UNS S32205 | Combines the properties of both austenitic and ferritic stainless steels | Oil and gas, chemical processing, and marine applications |
| Grade | Tensile Strengtd (MPa) | Yield Strengtd (MPa) | Elongation (%) | Hardness (HB) |
| 304 | 515-750 | 205-290 | 40 | 170 |
| 316 | 515-720 | 205-275 | 40 | 150 |
| 321 | 520-750 | 205-290 | 40 | 170 |
| 310 | 520-730 | 205-275 | 35 | 200 |
| 2205 | 620-880 | 450-650 | 25 | 250 |
| 2507 | 700-900 | 550-750 | 25 | 290 |
| 904L | 590-790 | 240-310 | 40 | 160 |
| Duplex 2205 | 620-880 | 450-650 | 25 | 250 |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
| 304 | 515-750 | 205-290 | 40 | 170 |
| 316 | 515-720 | 205-275 | 40 | 150 |
| 321 | 520-750 | 205-290 | 40 | 170 |
| 310 | 520-730 | 205-275 | 35 | 200 |
| 2205 | 620-880 | 450-650 | 25 | 250 |
| 2507 | 700-900 | 550-750 | 25 | 290 |
| 904L | 590-790 | 240-310 | 40 | 160 |
| Duplex 2205 | 620-880 | 450-650 | 25 | 250 |
Oil & Gas Industrires
Chemical Industries
Construction Industries
Offshore Pipelines Works
Petrochemical Industry
Shipbuilding Industries
Hydraulic Applications
Piping Systems
Refining Industry
Food Processing Industry
Pulp & Paper Industry
Power Plant Industry
